Volkswagen Transporter T6 2015 - 2022 Workshop Manual. EWD

Volkswagen T6 Transporter / Caravelle / Multivan / California from 2015 Service and maintenance manual. T6 (SF, SG, SH, SJ, SL, ST) Engine type: TSI / CJKA / CJKB / TDI / CAAB / CFCA

Structurally, all repairs are divided according to the systems and units on which they are carried out (starting with the engine and ending with the body).

As necessary, operations are provided with warnings and useful tips based on the experience of experienced motorists.

The appendices contain information necessary for operation, maintenance and repair on the tightening torques of threaded connections, fuels and lubricants and operating fluids, used lamps and spark plugs, as well as body dimensions.

  • Transporter T6 (SGA, SGB, SGH) 2016 -
  • Caravelle T6 (SGJ) 2016 -
  • Multivan T6 (SGM, SGN) 2016 - 2021
  • Multivan T6 (STM, STN) 2022 -
  • California T6 (SGG, SGС) 2016 -
  • California Beach, VW Camper T6, (SFD, SFE, SFL, SFZ)

Volkswagen T6 Transporter Wiring diagrams. Fuse and relay

VW Transporter T6: 2016+ Electrical system Repair Manual

VW Transporter T6 - Wiring Diagrams Repair Manual

VW Transporter T6 - Fitting locations: Fuses, Relays, Earth points, Coupling points

  • Fitting locations: Earth points
  • Fitting locations: Fuses
  • Fitting locations: Relays
  • Fitting positions: front part of the vehicle
  • Fitting positions: middle part of the vehicle
  • Fitting positions: rear part of the vehicle
  • Fitting locations: Coupling points

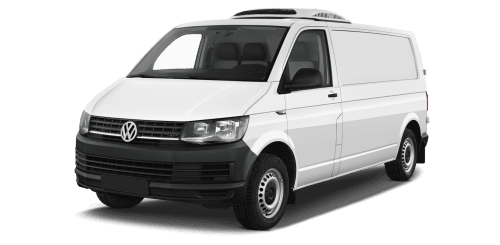

Volkswagen T6 Transporter

Volkswagen Transporter T6: overview, specifications and features of the model


The 6th generation Volkswagen Transporter is a popular and widespread German-made vehicle. Thanks to its spaciousness, high quality, assembly versatility and power, the model has become a success in all areas of the business.


Transporter T6 is presented in a wide range, which includes cargo versions, chassis, passenger, etc.


The design of the Transporter model is interesting by combining elegant flowing lines with precise tightness. The strict outlines of the body and hood, the clarity of the transitions of the roof and a large amount of glass add auto stability and severity.


Volkswagen Transporter - a combination of conciseness and restraint with optimal space and thoughtfulness of details. The driver's seat is equipped with a special orthopedic support that relieves stress from the lower back. Buyers have a wide choice of body colors. A feature of the model is the presence of bright shades along with classic colors.


Specifications Volkswagen 6th generation

The versatility and practicality of the model are recognizable in the world thanks to the optimal load capacity, 4MOTION all-wheel drive and a choice of modifications. Within the city, the technical characteristics are especially interesting for fuel consumption: only 15 liters. per 100 km.


The car accommodates up to 9 people, the length of the wheelbase of 3000 and 3400 mm and a large trunk allow them to feel no constraint. All configurations are equipped with electronic security systems VSC and ABS, as well as a differential lock.

Options Volkswagen Transporter

The modern 2019 VW Transporter is available in the following trim levels:

  • L2 Single Cube;
  • L1H1;
  • L2H1;
  • 2.0 MT6.

The L2 Single Cub modification is distinguished by the simplicity and practicality of a vehicle designed to carry passengers and goods; it is possible to mount a protective awning on the body.


Versions L1H1 and L2H1 are distinguished by the presence of three heights and a longer wheelbase. It is possible to transport goods up to 1.4 tons, up to 9.3 m³. There are also several options for door designs.


Modification 2.0 MT6 is an ideal family option, it freely transports 9 people. The modular system allows you to install a three-seater sofa in the salon.
